2Box Hihat Controller
« on: June 04, 2011, 08:46:49 PM »
Hello,

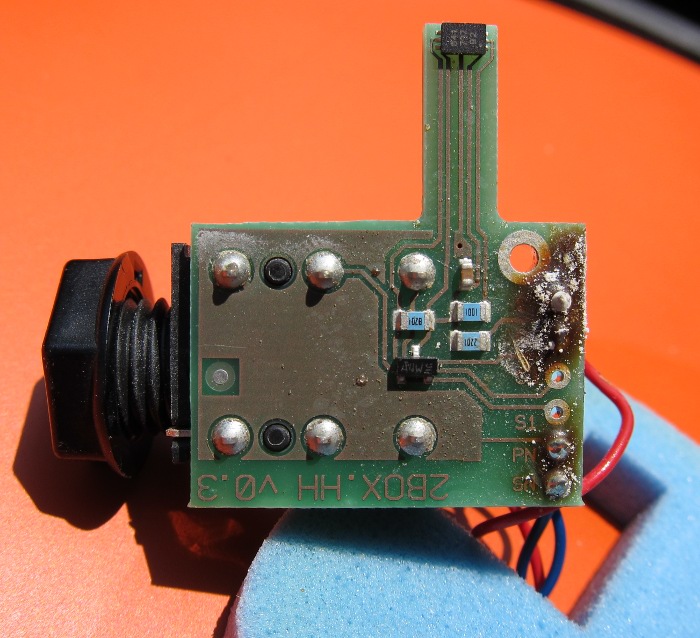

finally i opened my hihat because i wanted to know how it works. Some people are talking about "magnetic vodoo" but its not that complicated  :) The first thing i saw was that the PCB was not cleaned properly. Due to that it started to rot. Here is a picture:

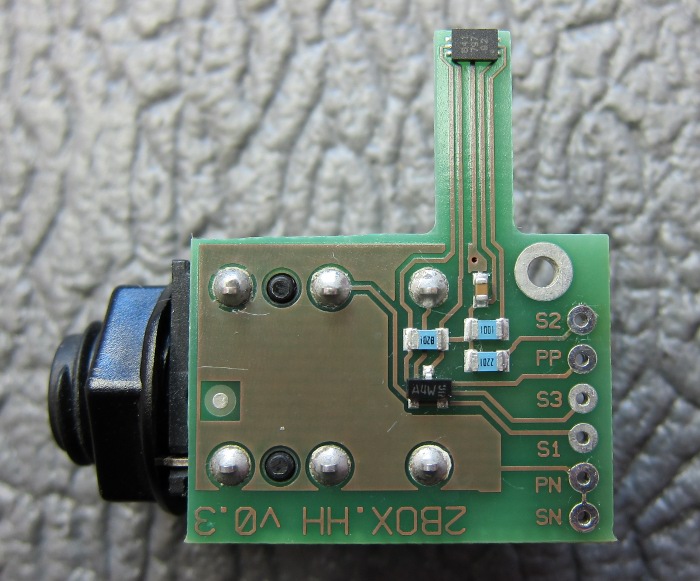

By the way, the chip on top is the (magnetic) hall sensor. After cleaning it looks like this:

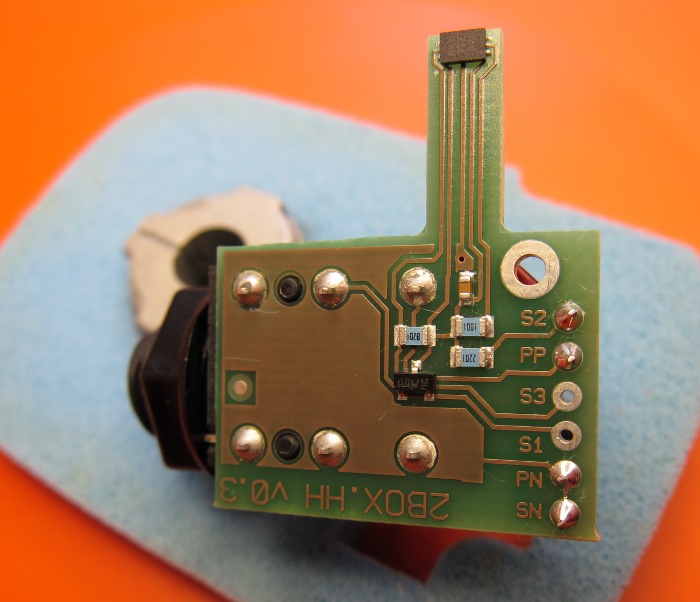

And finally after cleaning and soldering:



Of course i tried to draw the schematic:




Any comments are welcome  :)

Regards, Manfred
« Last Edit: August 30, 2012, 03:50:38 PM by Manfred »

Baby Samus

  • Guest
Re: 2Box Hihat Controller
« Reply #1 on: June 05, 2011, 06:11:38 PM »
Detailed work as usual Manfred!  This information will surely help making a DIY hi-hat much easier now.  Pity to see that the chipboard was rotting like that - another thing to mark on the 2Box quality control list.  Little things like that make a big difference to the kit so well spotted man.

rythm

  • Guest
Re: 2Box Hihat Controller
« Reply #2 on: June 10, 2011, 08:46:10 PM »

Manfred

  • Sr. Member
  • ****
  • Posts: 287
  • Karma: 30
    • View Profile
Re: 2Box Hihat Controller
« Reply #3 on: June 10, 2011, 10:21:14 PM »

Good question. I just unsoldered the wires to separate the the circuit board from the cymbal. So i had to solder them again. Thats all.

In my opinion the concept with a magnetic level detection is quite good. Since there are no mechanically moved parts i would expect that it is reliable. And the cost for the electronic is pretty low.

Regards, Manfred

Manfred

  • Sr. Member
  • ****
  • Posts: 287
  • Karma: 30
    • View Profile
Re: 2Box Hihat Controller
« Reply #4 on: August 24, 2011, 02:11:59 PM »
Hi,

a small correction of the schematic posted above:




Regards, Manfred
« Last Edit: August 30, 2012, 03:49:45 PM by Manfred »

Krillo

  • Full Member
  • ***
  • Posts: 135
  • Karma: 14
    • View Profile
Re: 2Box Hihat Controller
« Reply #5 on: September 02, 2012, 06:23:16 PM »
I can't see the schematic. Has it been taken down? I'd love to see it, plz  :)

waxdass

  • Guest
Re: 2Box Hihat Controller
« Reply #6 on: September 16, 2012, 06:16:10 AM »
Having issues viewing schematic aswell

Krillo

  • Full Member
  • ***
  • Posts: 135
  • Karma: 14
    • View Profile
Re: 2Box Hihat Controller
« Reply #7 on: February 15, 2014, 09:47:17 AM »
Here's the schematic of the 2box hihat:
